Solar PV Mounting Systems: Types, Materials & Applications
SUNOLUXE guide to rooftop, ground, carport, floating PV and BIPV racking.
I. Classification by Installation Scenarios
1. Rooftop PV Mounting System
Sloped Roofs & Flat Roofs Installation
Sloped Roofs: Common roof types include metal sheet,
tile, asphalt shingle, and flat tiles.
Features:

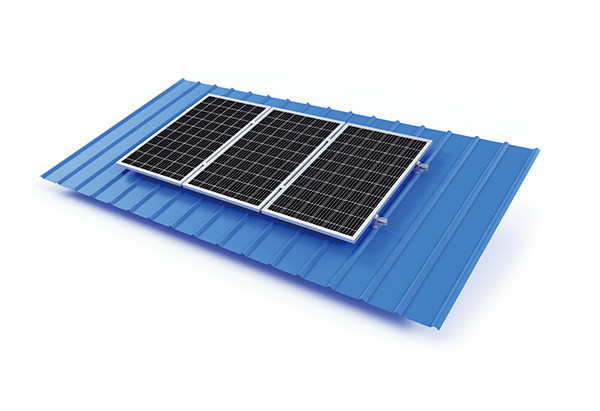

• Metal sheet: Aluminum rails + stainless steel clamps/hooks, lightweight and anti-corrosive.

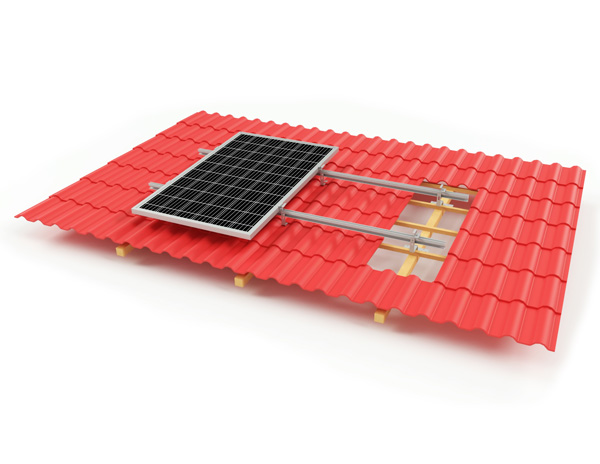

• Tile/Asphalt shingle: Requires penetration → aluminum + waterproof pads.
• Flat tiles: Elevated support frame, angle adjustable.
Advantages: Uses existing roof, no extra land occupation.
Disadvantages: Limited by roof orientation and load capacity.

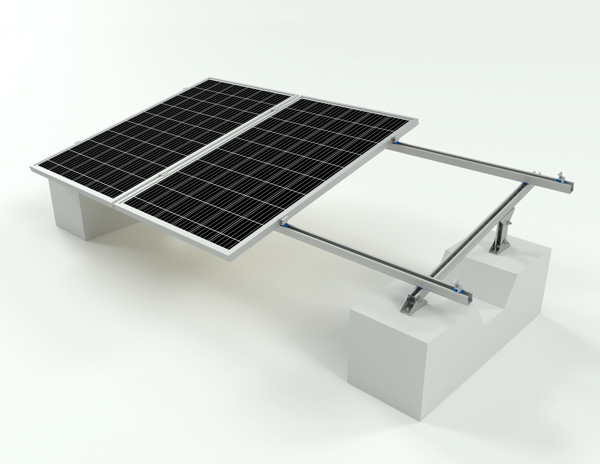

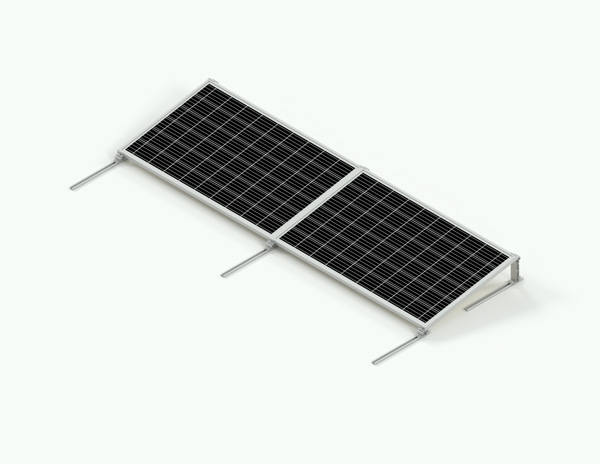

Flat Roofs:
• Methods: Concrete ballast, expansion bolt fixation.
• Materials: Galvanized steel (corrosion resistant), aluminum alloy (lightweight).
• Features: Adjustable tilt, suitable for residential and commercial rooftops.

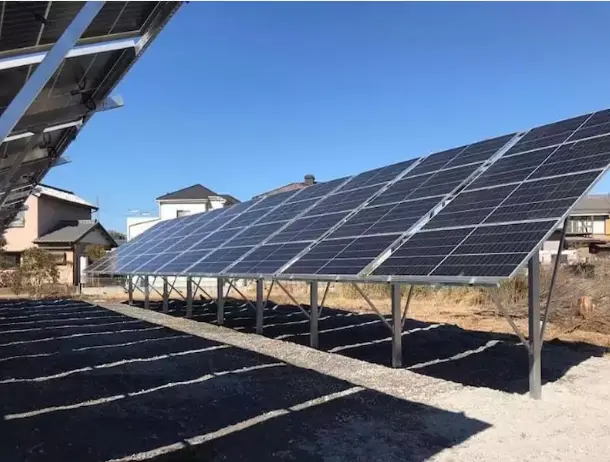

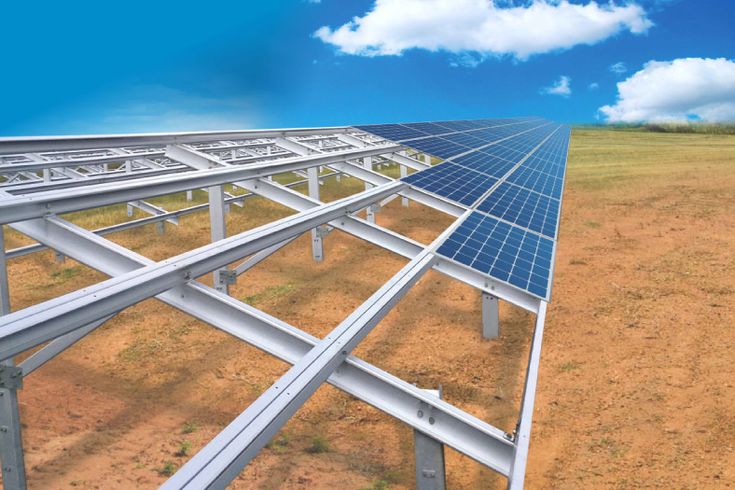

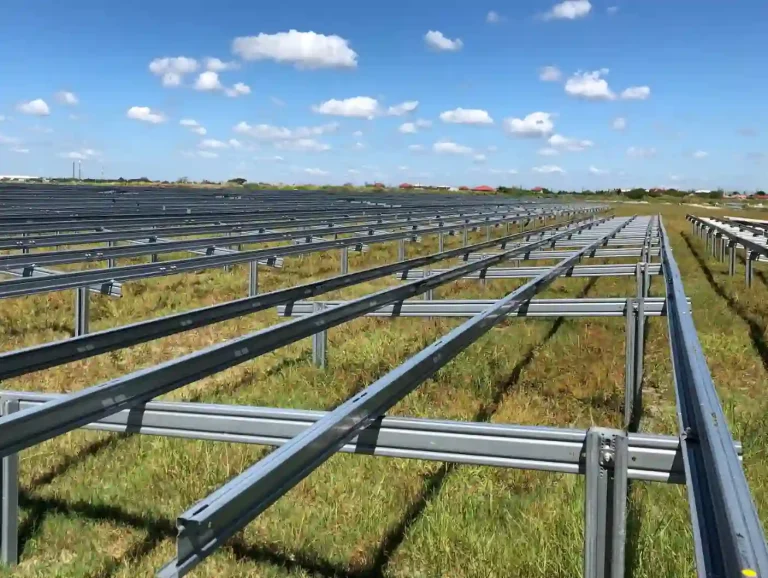

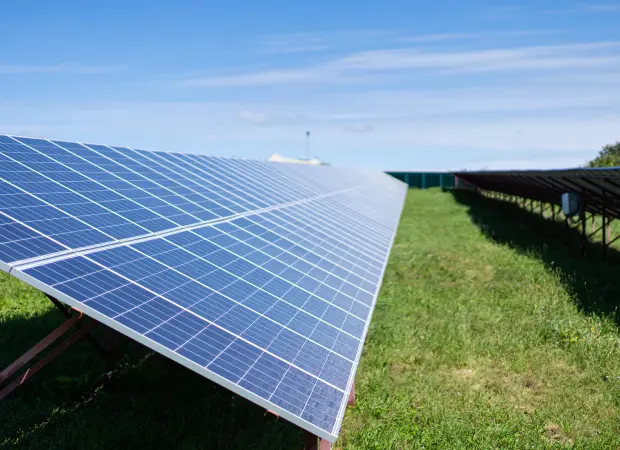

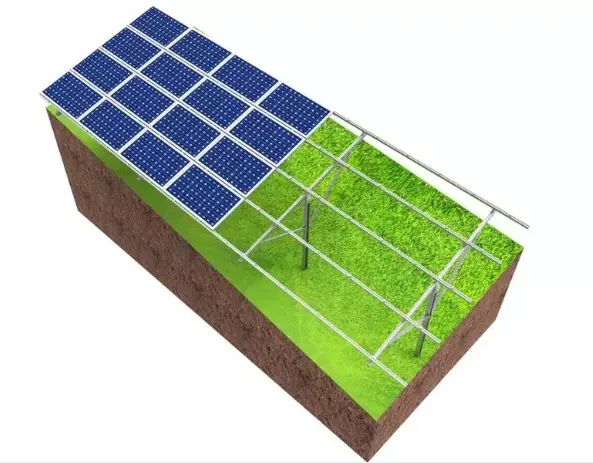

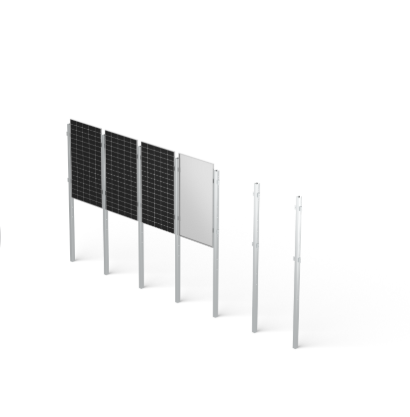

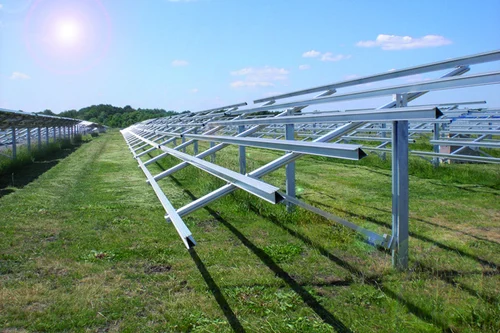

2. Ground-mounted PV System
Fixed, Adjustable & Tracking Mounting Types

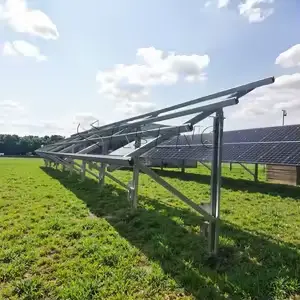

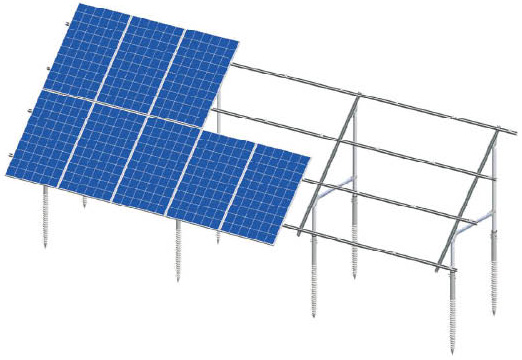

Fixed Tilt: Directly fixed to concrete foundations or screw piles.
Materials: Q235 hot-dip galvanized steel, aluminum alloy.
Adjustable Tilt: Seasonal adjustment of angle to improve efficiency.
Tracking Systems (Single-axis / Dual-axis):
• Single-axis: Tracks sun east-west.
• Dual-axis: Tracks both north-south and east-west, highest efficiency.
• Disadvantage: Higher cost and complex maintenance.
Application: Farmlands, grasslands, large-scale ground-mounted solar plants.

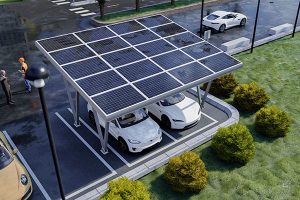

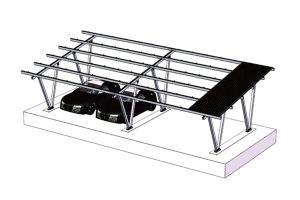

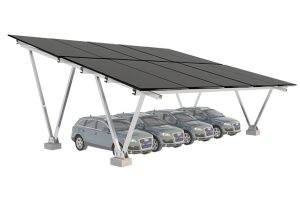

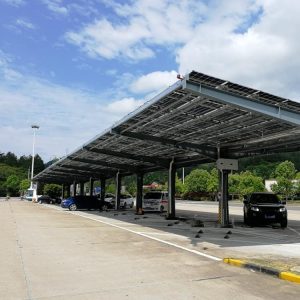

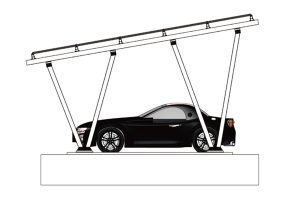

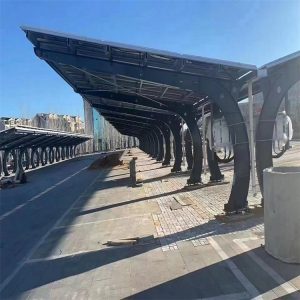

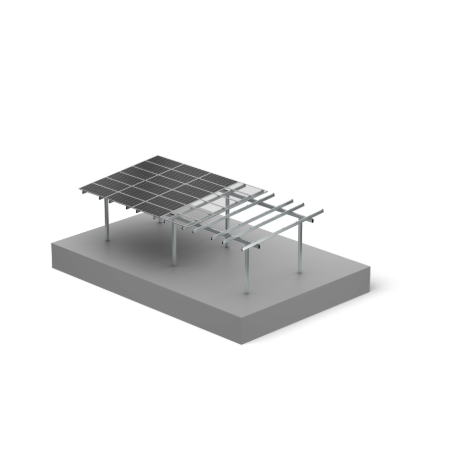

3. Solar Carport Mounting System
Types, Materials & Features
Types: Single-row, double-row, detached, continuous.
Materials: • Main structure → Q235 hot-dip galvanized steel (high strength). • Secondary → Aluminum rails (lightweight, anti-corrosive).
Features: • Provides shade for parking while generating power. • Can integrate EV charging stations → solar + storage + charging solutions.

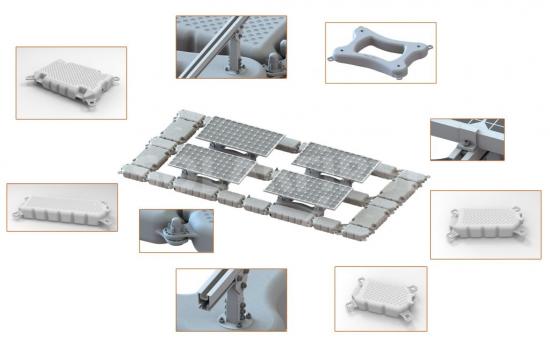

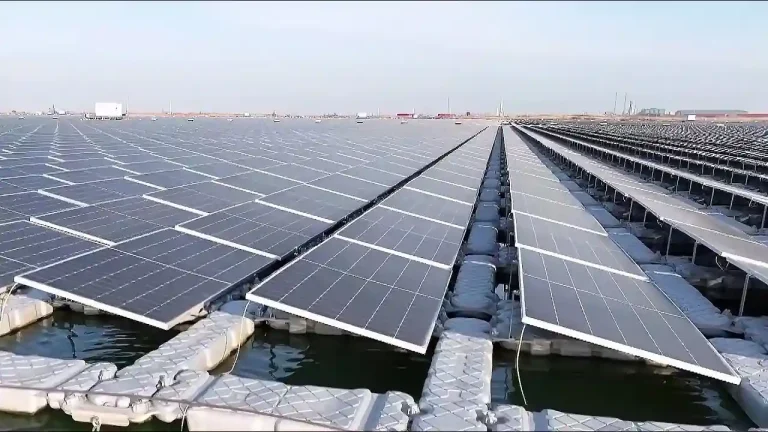

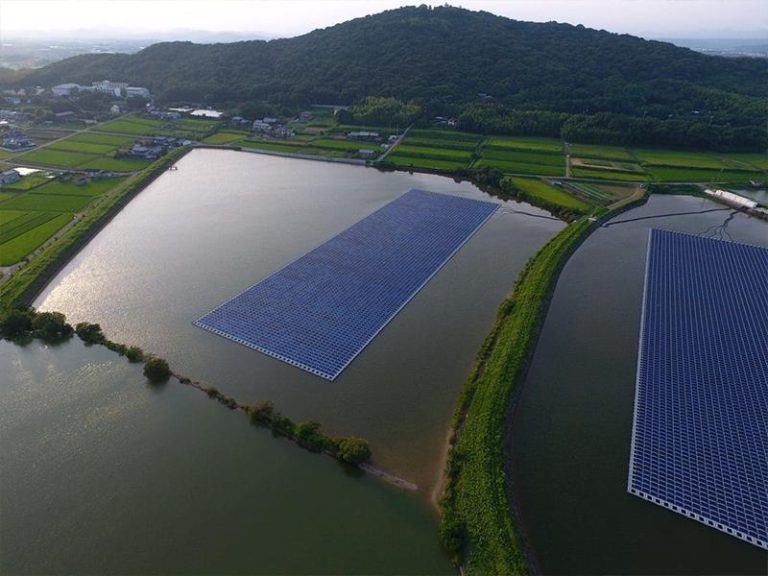

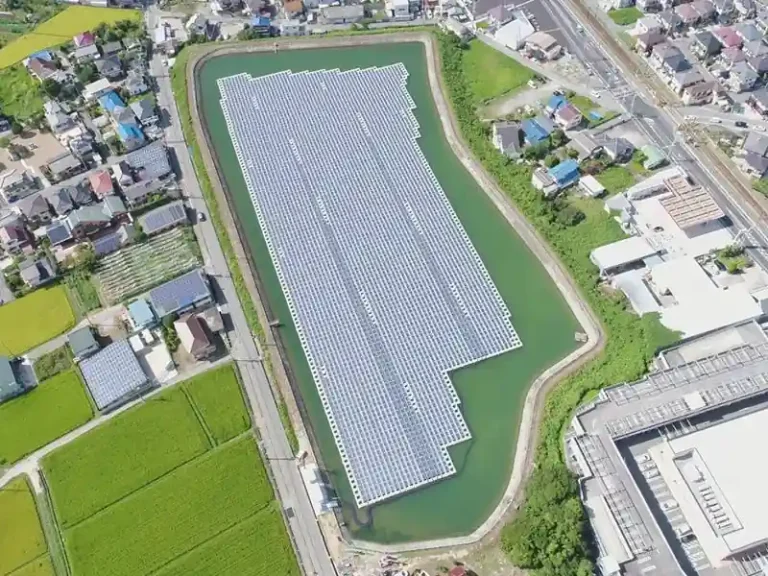

4. Floating PV System
Float Materials, Fixation & Advantages
Float Material: HDPE (High-density polyethylene), UV-resistant, anti-corrosive. Fixation: Anchors (for lakes/reservoirs), steel piles (shallow waters).
Advantages: • Reduces water evaporation, improves water quality. • Water cooling increases module efficiency by ~5–10%.
Applications: Reservoirs, fishponds, lakes.

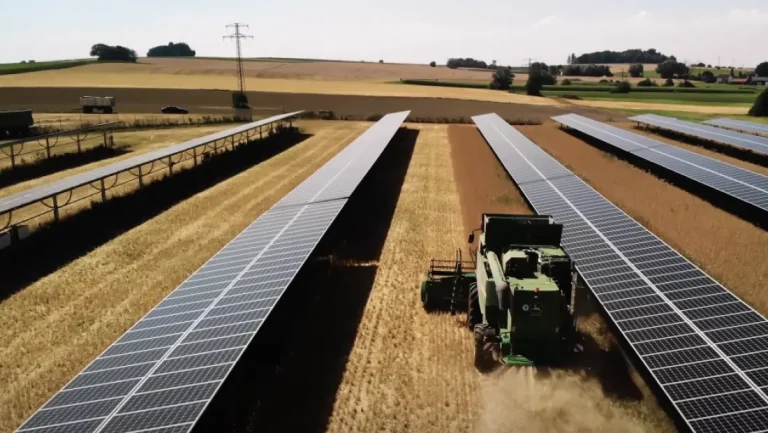

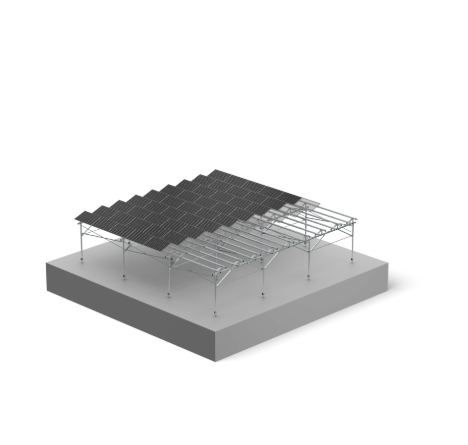

5. Agro-PV Mounting System
Installation, Materials & Features
Installation: Elevated 3–5 meters, leaving space beneath PV modules.
Materials: Galvanized steel + aluminum alloy.
Features:
• Allows crop cultivation/animal farming underneath.
• Provides shading, increases land utilization efficiency.
6. BIPV (Building Integrated PV)
Integration Types, Materials & Features
Integration:
• Rooftop integration: PV tiles or glass replacing traditional tiles.
• Curtain wall integration: PV glass façade.

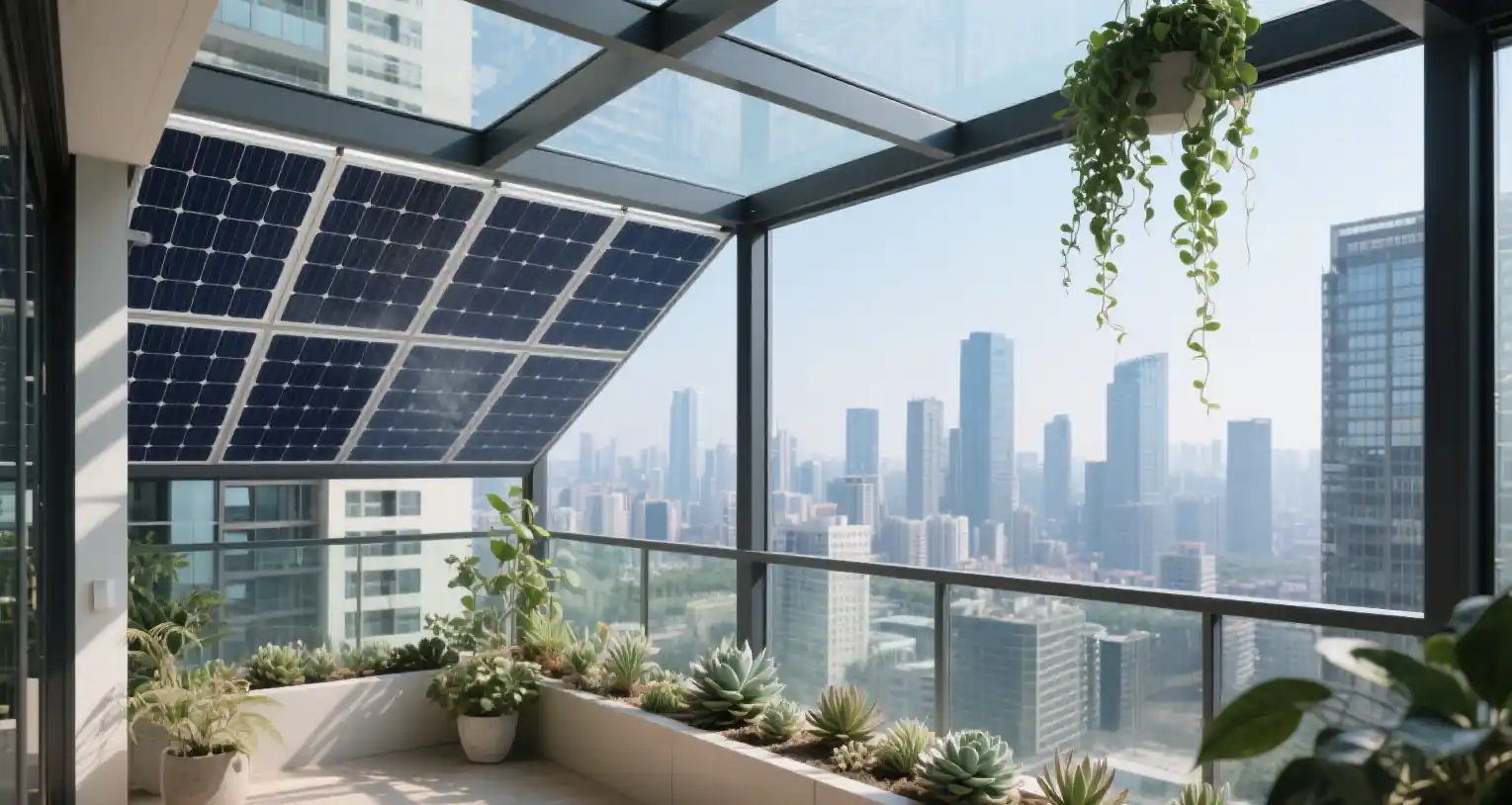

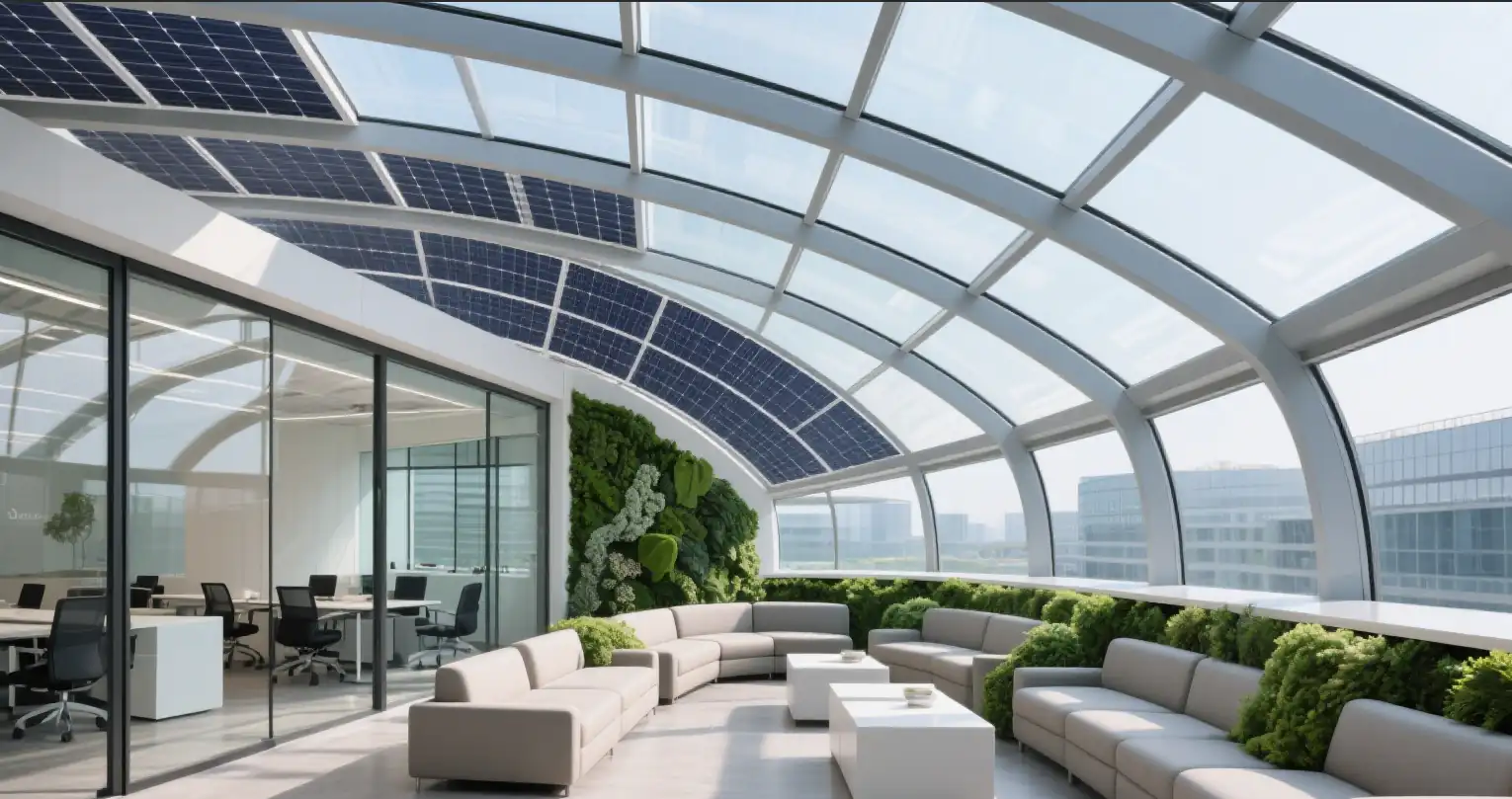

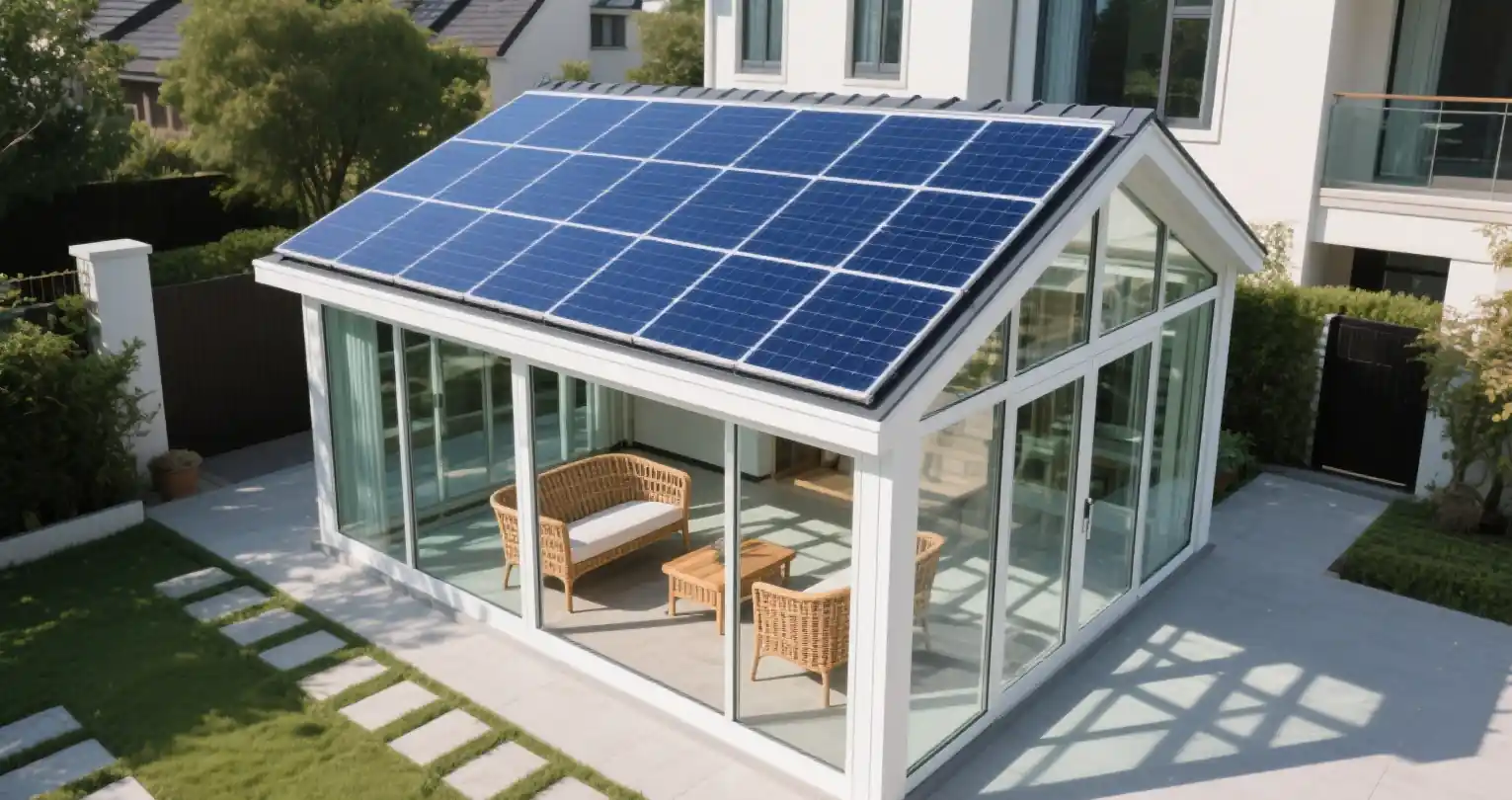

• Skylights / Sunrooms: PV glass roofing.
Materials: Steel structure + PV glass modules.
Features: Aesthetic, energy-saving, green building solution.
II. Classification by Materials
PV Mounting — Materials vs. Features & Applications
| Material | Features | Applications |
|---|---|---|
| Aluminum Alloy | Lightweight, anti-corrosive, aesthetic, easy to install | Rooftops, small distributed systems, façades |
| Hot-dip Galvanized Steel | High strength, durable, cost-effective | Ground-mounted plants, carports, large projects |
| Stainless Steel (304/316) | High corrosion resistance, long lifespan | Coastal / high salt-mist environments |
| HDPE (High-density polyethylene) | Anti-corrosive, UV-resistant, high buoyancy | Floating PV systems |
| FRP (Fiberglass Reinforced Plastic) | Corrosion-resistant, insulating, lightweight | Special scenarios (chemical plants, power lines) |
Tip: On small screens, swipe the table horizontally.
III. Summary
7. Summary of PV Mounting Applications
Key Points by Scenario
• Rooftop → Aluminum alloy mounting is most common
• Ground → Galvanized steel / Tracking systems
• Carport → Steel structure + aluminum rails
• Floating → HDPE floats
• Agro-PV → Elevated steel structures
• BIPV → PV glass + integrated architecture
• Special environments → Stainless steel / FRP
